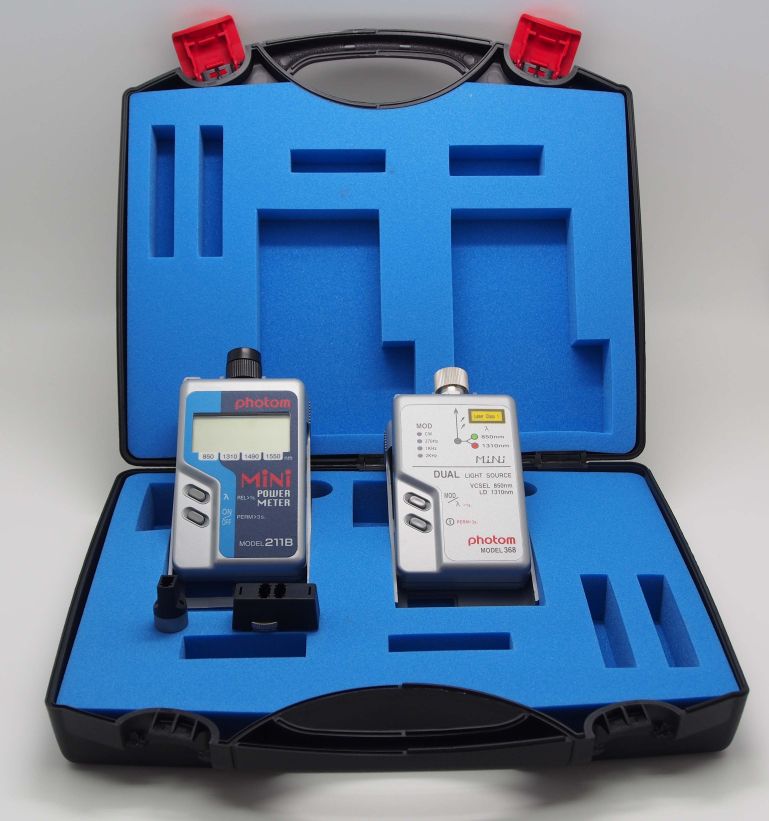

868B　 Mini Test-Kit for LAN/FTTH    NEW

· Most suitable for LAN & FTTH Installation /   Maintenance · Mini Powermeter / Mini Dual light source in   one set for LC connector · Small Carrying case stores Mini series  up to 4 units Product MODEL Qty 1 MiNi Power Meter 211B 1 2 Mini Dual LD Light Source(850/1310nm) 368 1 3 Connector adapter 180-SC 1 4 Connector adapter 180-LC 1 5 Connector adapter 181-SC 1 6 Connector adapter 181-LC 1 7 Carrying case (275 x 231 x 65mm) * 199-CBM2 1 Please ask our distributers for other connector types. * Carrying case itself is also available.

---

    863B　　 Mini Test-Kit for LAN     NEW

	· Most suitable for LAN Installation /   Maintenance · Mini Powermeter / Mini light source in   one set for LC connector · Equipped with a modescrambler, this unit  allows for more stable measurements
Product MODEL Qty 1 MiNi Power Meter 211B 1 2 MiNI LED Light Source(850nm) 351 1 3 MiNI LED Light Source(1310nm) 352 1 4 Connector adapter 180-SC 3 5 Connector adapter 180-LC 1 6 Mode scrambler 100G 1 7 Connecting adapter(SC-SC) 180-JSC 1 8 Connecting adapter(SC-LC) 180-JSC/LC 1 9 Carrying case (275 x 231 x 65mm) * 199-CBM3 1
Please ask our distributers for other connector types. * Carrying case itself is also available.

---

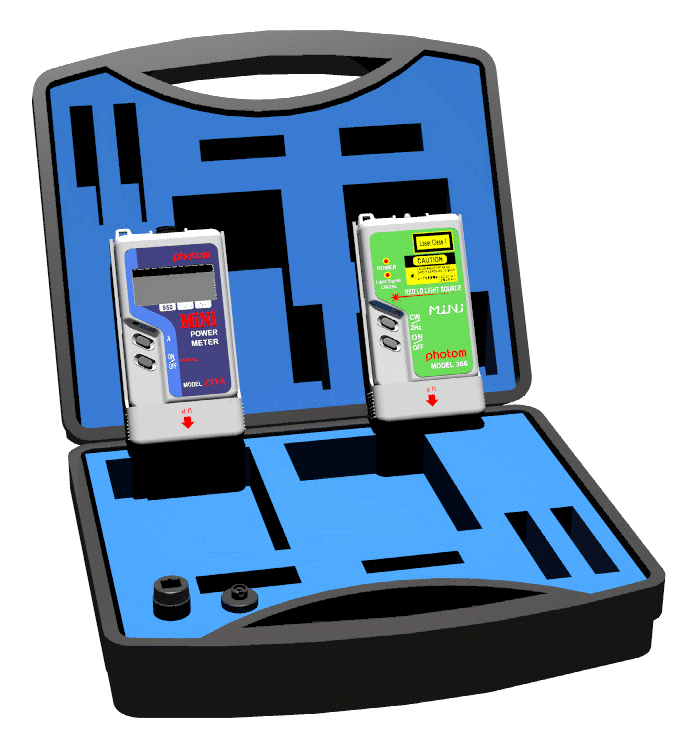

  861B/864B  Mini Test-Kit for LAN/FTTH    

	· Most suitable for LAN & FTTH Installation /   Maintenance · Mini Powermeter / Mini Visible light source in   one set(861B) · Mini Powermeter / Mini Dual light source in   one set(864B) · Small Carrying case stores Mini series  up to 4 units
Product MODEL Qty 861B 864B 1 Mini Power Meter 211B 1 1 2 Mini Visible LD Light Source(650nm) 366 1 0 3 Mini Dual LD Light Source(1310/1550nm) 364 0 1 4 Connector adapter 180-SC 1 1 5 Connector adapter 181-SC 0 1 6 Connector adapter 180-FC 1 0 7 Carrying case (275 x 231 x 65mm) * 199-CBM2 1 1
Model 861A/864A are discontinued. Replacement product are Model 861B/864B. Please ask our distributers for other connector types. * Carrying case itself is also available.

---

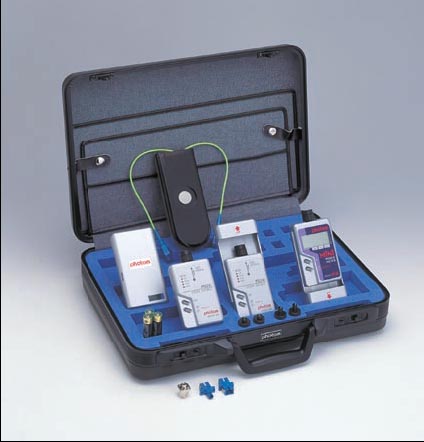

   811B   Multimode-Fiber Test Kit

	• Equipped with a modescrambler, this unit  allows for more stable measurements • Three types of connecting adaptors
Type MODEL Qty 1 MiNi Power Meter 211B 1 2 MiNI LED Light Source(850nm) 351 1 3 MiNI LED Light Source(1310nm) 352 1 4 Connector adapter 180-SC 3 5 Connector adapter 180-FC 2 6 Connector adapter 180-ST 2 7 Mode scrambler 100G 1 8 Connecting adapter(SC-SC) 180-JSC 1 9 Connecting adapter(SC-FC) 180-JSC/FC 1 10 Connecting adapter(SC-ST) 180-JSC/ST 1 11 Carrying Case (305 x 410 x 100mm) * 199-CBM 1
Model 811A is discontinued. Replacement product is Model 811B. Please ask our distributers for other connector types. * Carrying case itself is also available.

---

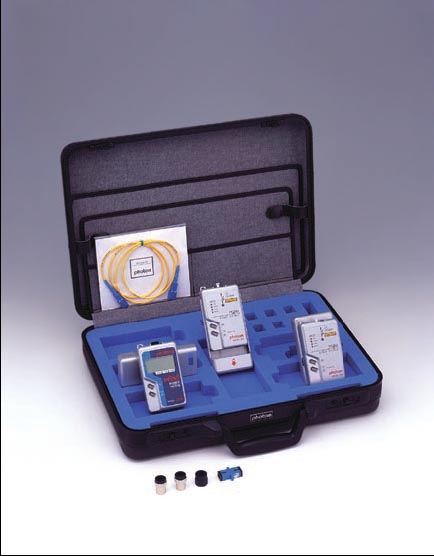

   822B    Singlemode-Fiber Test Kit

	• Best suited for testing SM fiber line • Mini LD light source - two wavelengths in   one set: 1310nm and 1550nm • Reference cable and connecting adapters   allow for stable loss measurement
Type MODEL Qty 1 MiNi Power Meter 211B 1 2 MiNI LD Light Source(1310nm) 362 1 3 MiNI LD Light Source(1550nm) 363 1 4 Connector adapter 180-SC 1 5 Connector adapter 181-SC 2 6 Connector adapter(SC-SC) 180-JSC 1 7 Reference cable 160-SM-SC 1 8 Carrying Case (305 x 410 x 100mm) * 199-CBM 1
Model 822A is discontinued. Replacement product is Model 822B. Please ask our distributers for other connector types. * Carrying case itself is also available.

---

  850     Singlemode-Fiber Test Kit

	• This single kit allows testing of SM   wavelengths of 1310 and 1550nm • Set with Model 385H dual wavelength LD light   source : switch from 1310 to 1550nm power   output
Type MODEL Qty 1 Optical Power Meter 215 1 2 LD Stabilized Light Source(1310nm, 1550nm) 385H 1 3 Connector adapter 180-SC 1 4 Connector adapter 181-SC 1 5 Connecting adapter(SC-SC) 180-JSC 1 6 Reference cable 160-SM-SC 1 7 Carrying Case (305 x 410 x 100mm)* 199-CBA 1
Please ask our distributers for other connector types. * Carrying case itself is also available.

---

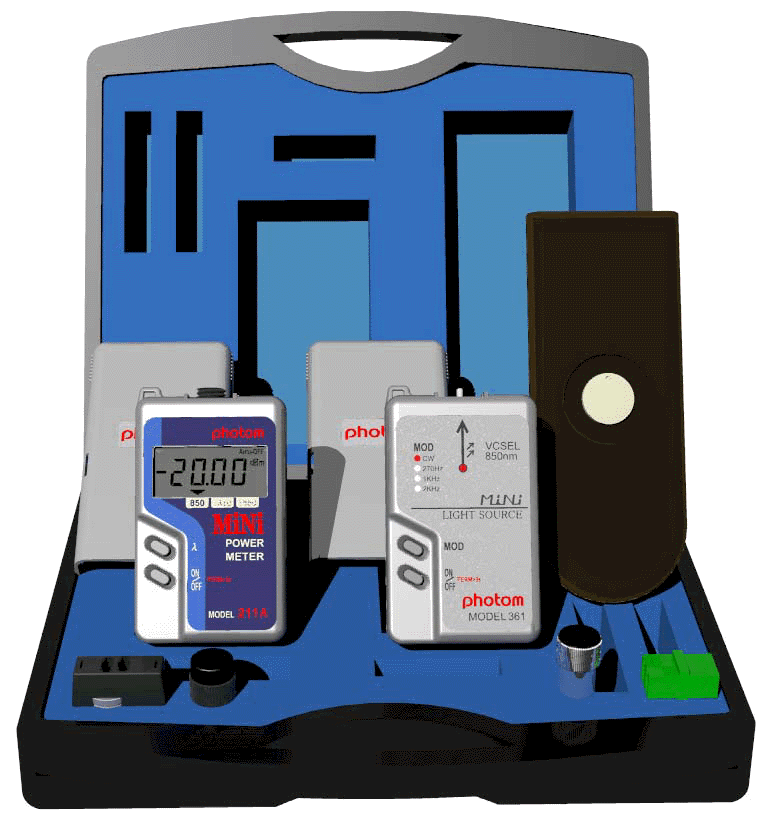

    831B/832B   Mini Test-kit for FA/LAN   

	· Most suitable for FA & LAN Installation /   Maintenance ·MODEL 831B : for 1000BASE-SX ·MODEL 832B : for 1000BASE-LX · Small Carrying case stores Mini series  up to 4 units
Product MODEL Qty 831B 832B 1 Mini Power Meter 211B 1 1 2 MINI VCSEL Light Source(850nm) 361 1 0 3 MiNI LED Light Source(1310nm) 362 0 1 4 Mode Scrambler (LC) 100G-LC 1 0 5 Reference cable(SM-LC) 160-SM-LC 0 1 6 Connector adapter 180-SC 1 1 7 Connector adapter 180-LC 1 1 8 Connector adapter 181-SC 1 1 9 Connector adapter 181-LC 1 1 10 Connecting adapter(LC) 180-JLC 1 1 11 Carrying Case (275 x 231 x 65mm) * 199-CBM2 0 1 11 Carrying Case (275 x 231 x 65mm) * 199-CBM3 1 0
Model 831A/832A are discontinued. Replacement product are Model 831B/832B. Please ask our distributers for other connector types. * Carrying case itself is also available.
