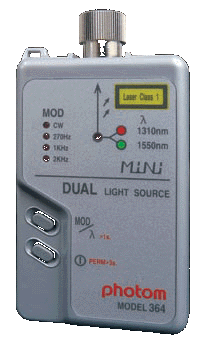

364/368 Mini Dual LD Light Source

· Dual wavelength LD light source with single output port :
1310nm/1550nm [Model 364]
850nm/1310nm [Model 368]
· One touch modulation (CW/2kHz/1kHz/270Hz)
· Lightweight and Compact: Business Card Size
· Needs only 1 "AA" battery

MODEL 364 368

Laser type FP-LD : 1310nm
FP-LD : 1550nm VCSEL : 850nm
FP-LD : 1310nm

Wavelength ^#1 1310±30nm/1550±30nm 850±20nm/1310±30nm

Output level > -6dBm ^#2 > -7dBm ^#3

Fiber SM GI

Spectral Width ≤ 5nm (RMS)

Instant Stability ^#4 < 0.1dB

Stability ^#5 < 1.0dB

Output Mode CW, 2kHz, 1kHz, 270Hz

Connector SC standard (181-SC)

Functions Auto power off (10min)
Memory backup(wavelength, output mode)

Power Supply AA Battery × 1
(Manganese, Alkaline, NiMH)

Battery Life ^#6 Approx. 20hours Approx. 15hours

Operating Environment -10 to +50°C, ≤80%RH (without condensation)

Storage Environment -20 to +60°C, ≤80%RH (without condensation)

Dimensions 61(W) ×99(H) ×22(D)mm(Main frame)
65(W) ×120(H) ×24(D) mm(incl. cover)

Weight Approx. 150g (including battery, case, adapter)

Laser Safety Class 1

Accessories Connector Adapter 181-SC, Cover, Wrist strap, Protection Cap, instruction Manual, AA Battery

#1: CW, at 23°C.
#2: CW, When using photom standard fiber SM10/125 at 25°C.
#3: CW, When using photom standard fiber GI50/125 at 25°C.
#4: When using photom standard fiber at 25°C for 1hour.
#5: When using photom standard fiber between 0 to +40°C for 12hours
#6: CW, 1310nm, Alkaline battery

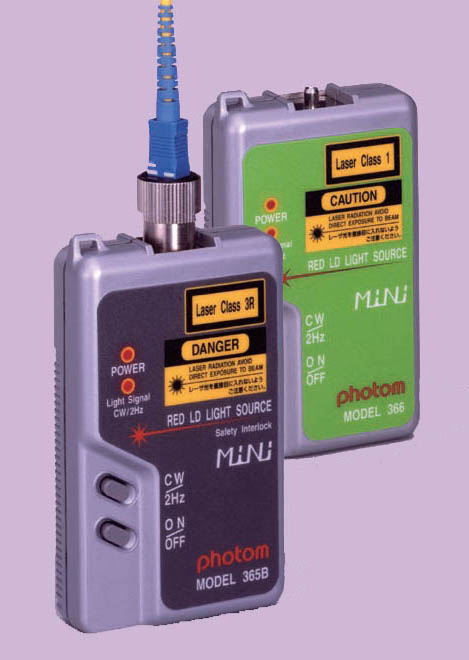

365B 366 Safety-conscious Visible LD Source

· Safety-Interlock: the laser power will decrease to
"Class 1" when the port is disconnected. [365B]
· High power visible light reaches approx. 6km. [365B]
· Laser"Class 1": no damage to the human body. [366]
· Universal adapter [366]
· 650nm & 2Hz-modulation offer long-distance visibility.
· Auto power off (5min.)
· Needs only 1 "AA" battery.
· RoHS compliant

MODEL 365B * 366

Laser Class Class 3R
(Unconnected: Class 1) Class 1

Wavelength ^#1 650nm±15nm

Fiber Type GI, SM φ2.5 Ferrule

Output ^#2 +5dBm (typ.) -5dBm (typ.)

Output Mode CW, 2Hz

Connector only for SC φ2.5 Ferrule(SC, FC, ST, DIN)

Function Auto Power Off (5min.)

Safety-Interlock Universal adapter

Power Supply AA Battery × 1
(Manganese, Alkaline, NiMH)

Battery Life ^#3 Approx. 10hours Approx. 20hours

Operating
Environment -10 to +50°C, ≤80%RH(without condensation)

Storage
Environment -20 to +60°C, ≤80%RH(without condensation)

Dimensions 61(W) × 99(H) × 22(D)mm (Main frame)
65(W) × 120(H) × 24(D)mm (incl. Case)

Weight approx. 150g
(incl. Case and battery)

Accessories Connector Adapter 181-SC,
Cover, Wrist strap, Protection Cap, instruction Manual, AA Battery Cover, Wrist strap, Protection Cap, instruction Manual, AA Battery

*This product has been discontinued.

#1: CW, at 23°C.
#2: When using photom standard fiber SM10/125.
#3: CW, Alkaline battery

351/352/362/363/372/373 Ultra-small LED/LD light source

• Auto power-off function (10 min.)
• High power output: over -5dBm (LD)
• Needs only 1 "AA" battery.
• One-touch modulation CW/2kHz/1kHz/270Hz
• DFB Laser Light Source(372/373) *

LED
Light Source LD
Light Source DFB LD
Light Source

MODEL 351 352 362 363 372 * 373 *

Wavelength^#1 850
±30nm 1310
±30nm 1310
±30nm 1550
±30nm 1310
±20nm 1550
±20nm

Fiber GI, APF, PCF GI SM

Output >-25dBm
(GI fiber) >-30dBm
(GI fiber) >-5dBm
(SM fiber)

Spectral Width ≤ 60nm
(FWHM) ≤ 150nm
(FWHM) ≤ 5nm
(RMS) ≤ 1nm
(Δλ, -20dB)

Instant Stability^#2 <0.02dB <0.05dB

Stability^#3 <0.4dB <0.4dB <0.4dB

Output Mode CW,2kHz,1kHz,270Hz

Connector SC standard (180-SC) SC standard (181-SC)

Function Auto Power Off

Power Supply UM-3(AA)Battery*1pc. (Manganese, Alkaline, NiMH)

Power Consumption
(CW, approx.) 140mW 90mW 90mW 140mW 140mW 140mW

Battery Life
(approx.)^#4 18 hrs. 30 hrs. 30 hrs. 18 hrs. 18 hrs. 18 hrs.

Operating
Environment -10 to +50°C, ≤80%RH(without condensation)

Storage
Environment -20 to +60°C, ≤80%RH(without condensation)

Dimensions 61(W)×99(H)×22(D)mm(Main frame)
65(W)×120(H)×24(D)mm(incl. Case)

Weight approx. 130g
(Including battery, case & connector adaptor)

Laser Safety - Class 1

Accessories Connector Adapter(351/352:180-SC, 362/363/372/373: 181-SC), Cover, Wrist Strap, Protection Cap, Instruction Manual, AA Battery

* Build-to-order products. Please ask our distributers for delivery.

#1: CW, at 23°C.
#2: When using photom standard fiber at 25°C for 1hour.
#3: When using photom standard fiber between 0 to +40°C for 12hours
#4: CW, Alkaline battery (Panasonic LR6(G))
Warning) Avoid direct eye exposure to the output of laser, or it could result in eye injuries.

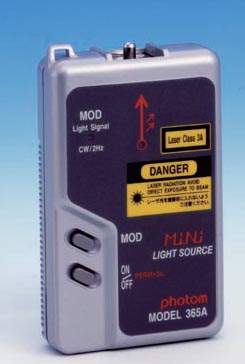

365A Ultra small Visible LD for fault detection

• Visible LD makes unit easy to use for fault detection
• 2Hz modulated light offers long-distance visibility
• High power visible light reaches approximately 6km
• Auto power off (5min.)
• Universal Connector Interface (UCI) for φ2.5mm fiber
• Needs only 1 "AA" battery. 10-hour battery life

MODEL 365A

Device LD

Wavelength^#1 650±15nm

Fiber SM, GI

Output^#2 +5dBm (typ.)

Output Mode CW, 2Hz

Connector Universal Connector Interface (UCI) for φ2.5mm
(SC, FC, ST, DIN)

Function Auto Power Off (5min.)

Power Supply UM-3(AA)Battery 1pc. (Manganese, Alkaline, NiMH)

Battery Life Approx. 10 hours (Alkaline(Panasonic LR6-G), CW)

Operating
Environment -10 to +50°C, ≤80%RH (without condensation)

Dimensions 61(W)×99(H)×22(D)mm(Main frame)
65(W)×120(H)×24(D)mm (incl. case)

Weight approx. 130g (incl. battery & case)

Laser Safety Class 3R

Accessories Cover, Wrist Strap, Protection Cap, Instruction Manual, AA Battery

#1: CW, at 23°C.
#2: When using photom standard fiber SM10/125
Warning) Avoid direct eye exposure to the output of laser, or it could result in eye injuries.

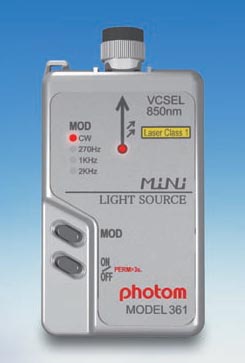

361 Ultra-small and lightweight VCSEL light source

• VCSEL laser diode light source
• 850nm, High Power Output: -5dBm
• Suitable for 1000BASE-SX link
• Auto power-off function (10 min.)
• Needs only 1 "AA" battery. 40-hour battery life

MODEL 361

Device VCSEL

Wavelength^#1 850±10nm

Spectral Width ≤ 1nm (RMS)

Fiber GI , φ2.5mm ferrule

Output^#2 -5dBm (typ.)

Stability^#3 <0.4dB

Instant Stability^#4 <0.2dB

Output Mode CW, 2KHz, 1KHz, 270Hz

Connector SC standard (181-SC)

Function Auto Power Off (10min.)

Power Supply UM-3(AA)Battery 1pc. (Manganese, Alkaline, NiMH)

Battery Life Approx. 40 hours (Alkaline(Panasonic LR6-G), CW)

Operating
Environment -10 to +50°C, <80%RH (without condensation)

Dimensions 61(W)×99(H)×22(D)mm(Main frame)
65(W)×120(H)×24(D)mm (incl. case)

Weight approx. 130g (incl. battery & case)

Laser Safety Class 1

Accessories Connector Adapter181-SC, Cover, Wrist Strap, Protection Cap, Instruction Manual, AA Battery

#1: CW, at 23°C.
#2: CW, When using photom standard fiber GI50/125.
#3: When using photom standard fiber between 0 to +40°C for 12hours
#4: When using photom standard fiber at 25°C for 1hour.
Warning) Avoid direct eye exposure to the output of laser, or it could result in eye injuries.

390 series
Remote-control LD light source with variable power output levels

• Remote operation from PC via RS-232C interface
• 0 dBm to -6 dBm variable output level
• LCD digital display of output power level
• Dual output :1310nm/1550nm (Model 395)

LD Light Source DFB LD Light Source

MODEL 392H 393H 395H 392HD 393HD 394HD-
1625 394HD-
1650

Wavelength^#1 1310±
30nm 1550±
30nm 1310/
1550±
30nm 1310±
20nm 1550±
20nm 1625±
10nm 1650±
10nm

Fiber Type SM 10/125

Output^#2 0dBm Typical

Spectral Width ≤5nm (RMS) ≤1nm (Δλ, -20dB)

Instant Stability^#3 ≤0.05dB (a uniform temperature for 1 hour)

Stability^#4 ≤0.4dB ≤1.0dB

Output mode CW,2kHz,1kHz,270Hz,1Hz

Output range 0dBm to -6dBm

Interface
(RS-232C) Connector : 3p subminiture jack dia. 2.5mm
Baud rate : 9600bps
Remote control : ON/OFF, Modulation, Output power

Resolution 0.01dB

Optical Connector SC standard(181-SC), others optional

Functions
dBm(ABS)/dB(REL), Data hold, Memory backup, Auto power off, Built-in Battery-charger

Display
3¹/₂digit LCD (3200 counts), Low-battery display

Power
supply Battery (UM-3)/4 pcs. or optional AC adapter,
Rechargeable Batteries

Power
consumption
Approx. 250mW (Maximum output power))

Battery life Approx. 20 hours (Alkaline, CW, Maximum output power)

Charge Time Approx. 10hours (NiMH Batteries w/AC adapter)

Operating
Environment -10 to +50°C ^#5, ≤80%RH(non-condensing)

Storage
Environment -40 to +70°C, ≤80%RH(non-condensing)

Dimension
Weight 90(W)×190(H)×45(D)mm
450g(including batteries)

Laser Safety Class 1

Accessories Connector Adapter 181-SC(395H:2pcs、Others:1pc),
3Pφ2.5 Plug (RS232C), AA Batteries (4pcs), Protection Cap(395H:2pcs、Others:1pc), Instruction Manual, Portable Case,

* Build-to-order products. Please ask our distributers for delivery.
#1: CW, at 23°C.
#2: CW, When using photom standard fiber SM10/125 at 25°C.
#3: When using photom standard fiber at 25°C for 1hour.
#4: When using photom standard fiber between 0 to +40°C for 12hours
#5: 0 to +40°C, (394HD-1650)
Warning) Avoid direct eye exposure to the output of laser, or it could result in eye injuries.

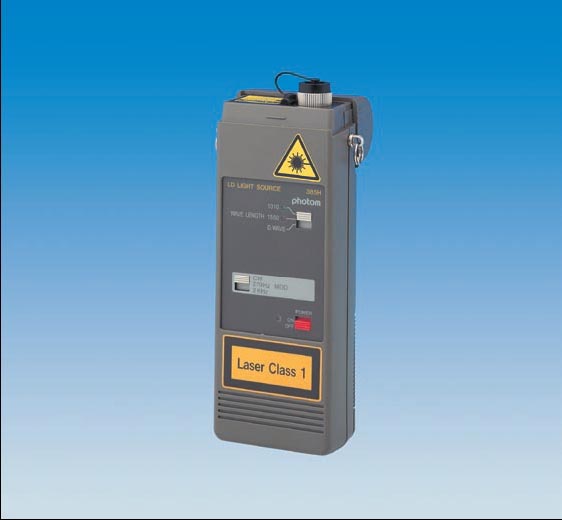

385H 1310nm/1550nm Dual Wavelength Stabilized Light Source

• Dual wavelength LD light source with single
output port
• Dual output selectable in single port :
1310nm/1550nm

MODEL 385H

Light source LD

Wavelength^#1 1310/1550±30nm

Fiber SM

Output (CW)^#2 -6dBm (Typ.)

Spectral Width ≤5nm (RMS)

Stability^#3 ≤0.7dB

Instant Stability^#4 ≤0.1dB

Laser Safety class 1

Output Mode CW, 270Hz, 2KHz

Connector SC standard(181-SC), Others optional

Power Supply UM-3(AA) battery × 4pcs, or AC100V/120V/220V
using an AC adapter (optional)

Battery life Approx. 20 hours (CW, Alkaline)

Operating Environment -10 to +50°C, ≤80%RH(non-condensing)
Dimensions/Weight 65(W)×175(H)×35(D)mm, Approx.350g(including batteries)

Accessories Connector Adapter181-SC, AA Batteries (4pcs), Instruction Manual, Portable Case

#1: CW, at 23°C.
#2: CW, When using photom standard fiber SM10/125 at 25°C.
#3: When using photom standard fiber between 0 to +40°C for 12hours
#4: When using photom standard fiber at 25°C for 1hour.

LED Light Source Unit For GI-Fiber & POF
（MODEL 310-065CF is for sale while stock lasts.）

Built-in type Light Source Unit for Model 205A/215/208/218
(Optical Loss Test Set)

POF GI

MODEL 310-065CF 310-066LS 310-081CF 310-085LS 310-131LS

Wavelength^#1 655±15nm 660±15nm 810±30nm 850±30nm 1310±30nm

Fiber APF φ1
HPCF200/230 HPCF200/230 GI50/125, GI62.5/125,
HPCF200/230 GI50/125, GI62.5/125, SM10/125

Output ≥-15dBm^#2 ≥-20dBm^#2 ≥-20dBm^#3 ≥-25dBm^#4 ≥-30dBm^#4

Spectral
Width
(FWHM) ≤25nm ≤25nm ≤45nm ≤60nm ≤150nm

Connector See "Connector Adapter"

Applicable
Power Meter 205A, 208, 225 205A, 215,
225, 230,
235, 208,
218 215, 218,
230, 235

Operating -10 to +50°C, ≤80%RH(non-condensing)

Dimension
Weight 18(W)×42(H)×18(D)mm
Approx. 40g
Drawing

Accessories Protection Cap

#1: CW, at 23°C.
#2: When using photom standard fiber APF φ1
#3: When using photom standard fiber HPCF200/230
#4: When using photom standard fiber GI50/125

LD Light Source Unit For SM-Fiber

Built-in type Light Source Unit for Model 215/218
(Optical Loss Test Set)

MODEL 310-131LD 310-155LD

Wavelength ^#1 1310±30nm 1550±30nm

Fiber SM

Output ^#2 >-5dBm >-5dBm

Spectral Width ≤5nm (RMS) ≤5nm (RMS)

Instant Stability ^#3 0.05dB

Stability ^#4 0.4dB

Connector SC standard(181-SC), others optional

Power consumption Approx. 150mW

Applicable
Power Meter MODEL 235, 230, 218, 215

Operating Environment -10 to +50°C, ≤80%RH(non-condensing)

Storage Environment -20 to +50°C, ≤80%RH(non-condensing)

Dimensions 60(W)×65(116)(H)×31(D)mm
(including connector adapter)
Drawing

Weight Approx. 110g

Laser Safety Class 1

Accessories Connector Adapter 181-SC

#1: CW, at 23°C.
#2: CW, When using photom standard fiber SM10/125 at 25°C.
#3: When using photom standard fiber at 25°C for 1hour.
#4: When using photom standard fiber between 0 to +40°C for 12hours
Warning) Avoid direct eye exposure to the output of laser, or it could result in eye injuries.

▲

｜HOME｜お問い合わせ

安全ゴムフロアリングや医薬品のリバテック
