180-BFA

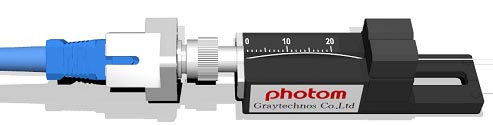

For temporary connection of bare fiber
|
|
• Special bending technology allows for reliable connections and protects fiber
from excessive pressure.
• Unique self-alignment feature of glass-ceramic ferrule reduces connection loss.
• V-groove allows for easy alignment, and damage- and dust-free connections
• Slide mechanism allows for easy connection to power meters as well.
• Suitable for temporary connection to power meter, OTDR, talk set, stable
light sources and visible light sources
• Suitable for various connectors
• Easy to replace the ferrule, easy to clean
|
Patented product
|
|
MODEL |
180-BFA |
|
Fiber |
Power meter |
SM |
GI |
- |
Connecting loss ※1. |
<1.0dB |
<0.5dB |
<0.5dB |
Optical return loss *1. |
<15dB |
- |
Connector |
type:FC
Suitable for FC、SC、ST、DIN connectors
(Using Connecting-adaptor: attached/optional) |
Fiber |
SM/GI fiber, UV-codeφ250μm, grass diameterφ125μm |
Dimensions, Weight |
75(W)×15(D)×25(H), 25g (main body) |
Accessories |
Case, SC-FC connecting adaptor,
Spare ferrules(2pcs), Instruction manual |
|
*1. When the barefiber-end is properly cleaved
|
100G/100G-LC
Stabilize the Mode Distribution of Multimode-FIber
|
|
In the measurement of the multimode fiber, it is necessary to measure it
in the steady-state-mode-distribution. Transmitting by hundreds of meters in fiber line makes this mode-distribution.

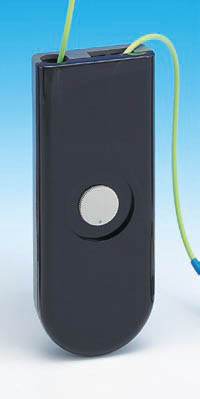

"Mordoscrambra 100G" produces the steady-state-mode equal with the long-distance transmission.
· For GI-Multimode-Fiber, Effective N.A.:0.192
· Trannsmission-loss, Joint-loss measurement
|
|
Model |
100G |
100G-LC(NEW) |
Connector |
SC (NTT) |
LC (Lucent) |
Fiber |
GI50/125 (GI62.5/125) |
Effective NA *1. |
0.192 |
Insertion Loss |
<6dB (850nm) |
Operating Environment |
-10 to +50°C, <80%RH |
Dimensions/Weight |
65(W)×165(H)×25(D) / Approx.350g
Drawing |
Accessories |
Junction-Adapter 180-JSC, Instruction Manual |
Junction-Adapter 180-JLC, Instruction Manual |
|
*1. This numerical aperture is given by the F.F.P. (far field pattern) at -20dB
|
|
|
180 & 181 Series

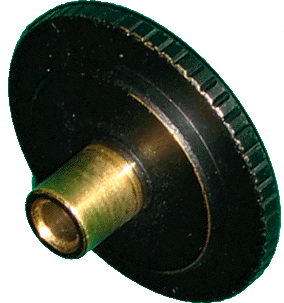

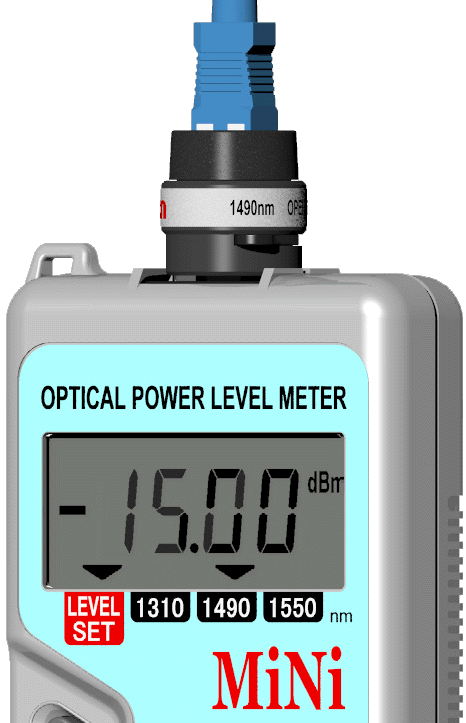

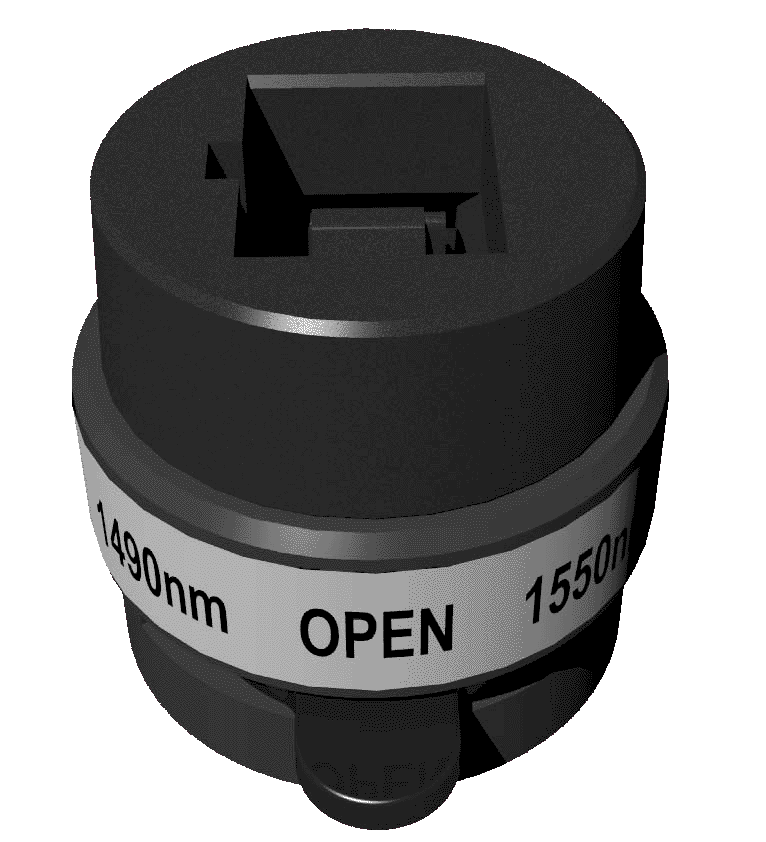

Universal type connector adapter |
|
|
|
Miscellaneous Optional Parts
|
|
Accessories, Repair Parts |

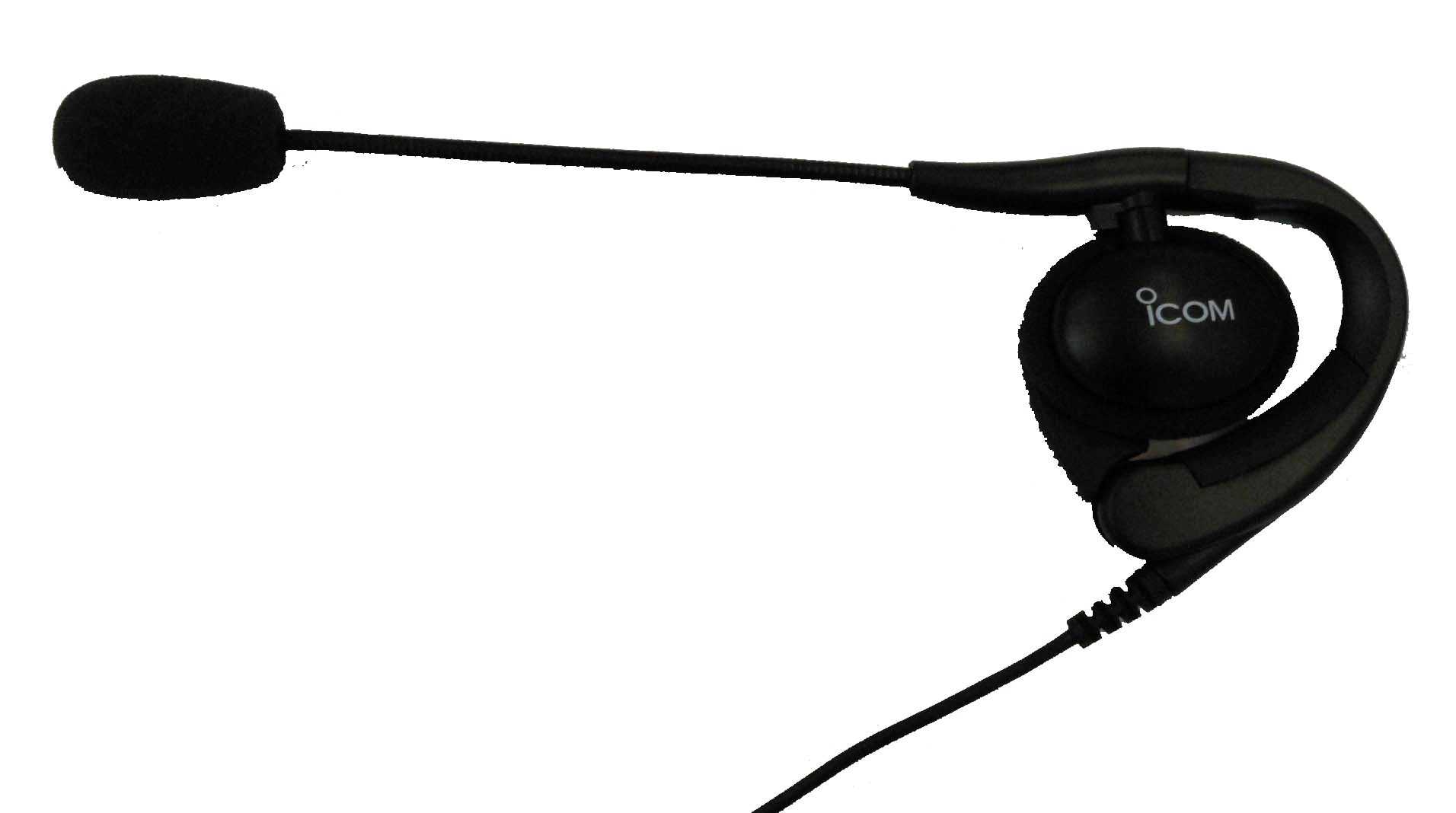

499-HS5 Headset(Talkset) |
|
|
|
|
|
|
|

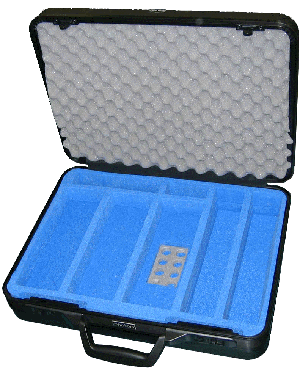

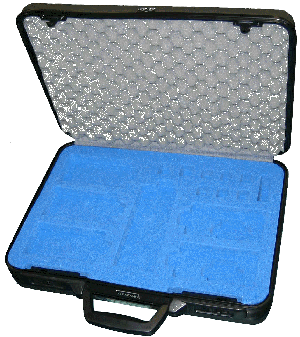

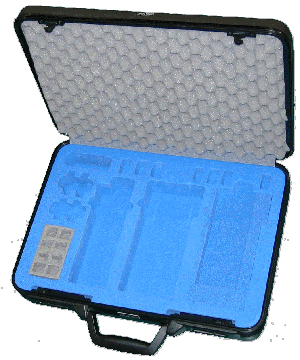

Carrying Case ** |
199-CBA (305 x 410 x 100mm) |
199-CBT (305 x 410 x 100mm) |
199-CBM (305 x 410 x 100mm) |
199-CBM2 (275 x 231 x 65mm) |
199-CBM3 (275 x 231 x 65mm) |
|
|
|
|
|
|
