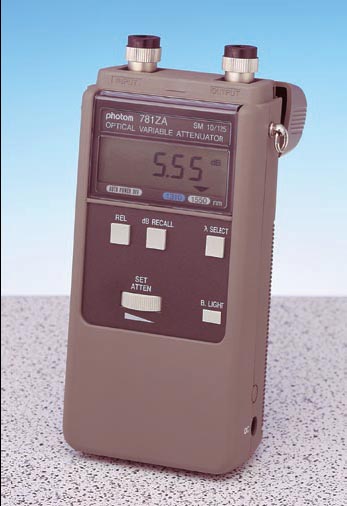

• High resolution: 0.01dB(781ZA)
• Attenuation range: over 60dB
• Digital display
• Uninterrupted variable attenuation
• Changing the connector adapter accommodates
various connectors
• Connector structure is easy to clean |
| MODEL |
780ZA |
781ZA |
| Fiber |
SM |
| Wavelength |
1310nm, 1550nm |
| Maximum Attenuation |
>60dB |
| Attenuation Setting |
continuously variable (Uninterrupted ) |
| DisplayResolution |
0.1dB |
0.01dB |
| Insertion Loss #1 |
≤3.0dB |
≤2.0dB |
| Attenuation Accuracy #1 |
±0.8dB |
±0.2dB #2
±0.4dB |
| Optical Return Loss |
>40dB |
| PDL |
<0.1dB |
| Connector |
SC standard(181-SC), Others optional |
| Maximum Input Power |
+18dBm |
| Power Supply |
UM-3(AA) battery × 4pcs,
or AC100V/120V/220V (optional AC adapter)
|
| Battery life |
Approx. 100 hours (Alkaline) |
| Auto Power-Off |
10 min. |
| Operating Environment |
-10 to +50°C, <80%RH(non-condensing) |
| Dimensions/Weight |
90(W)×175(H)×46(D)mm,
Approx. 550g(including batteries) |
| Accessories |
Instruction Manual, Connector Adapter 181-SC :2pcs, AA Batteries :4pcs, Carrying Case |
|
#1:
When using photom standard fiber.
#2: 0 to 30dB |
|
|
