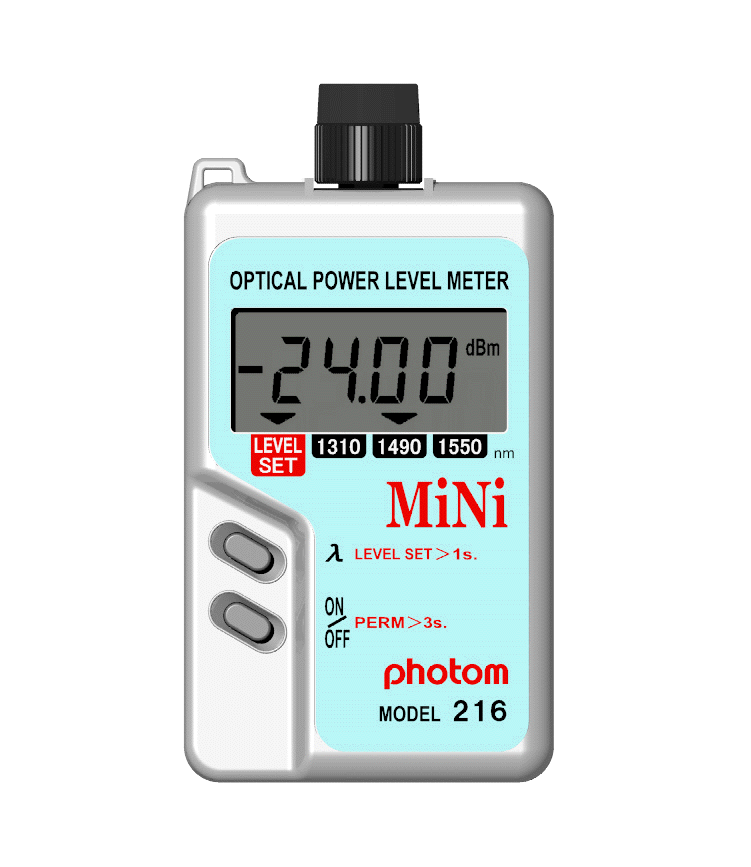

Optical Power Meter with buzzer for level check |
 |
・Buzzer for optical level check audibly
・Buzzer function level set : -30dBm to 0dBm, OFF
・Suitable for FTTH/Optical device inspection
・1310nm/1490nm/1550nm for FTTH
・High resolution : 0.01dB
・Needs only 1 "AA" battery. 50-hour battery life
|
| MODEL |
216 |
| Calibrated Wavelengths |
1310nm, 1490nm, 1550nm |
| Measuring Range |
-70dBm to +5dBm |
| Uncertainty |
±3%(k=2) at 1310nm, -10dBm, 23±5˚C |
| Sensor |
InGaAs Photo diode (φ１mm) |
| Resolution |
dBm:0.01dB(≧-50dBm) |
| Fiber Type |
GI、SM |
| Connector |
SC(180-SC) standard, others are optional |
| Buzzer Function |
Level set:-30dBm to 0dBm(Set Resolution:1dB), OFF |
| Function |
ZERO-SET, AUTO-OFF(10 min.) |
| Display |
3
1/2digit LCD |
| Power Supply |
Battery(UM-3:AA)
(Manganese, Alkaline, Ni-Cd/NiMH) |
| Battery life |
Approx. 50 hrs (Alkaline Panasonic LR6(G)) |
| Operating Environment |
-10 to +50˚C, ≤80%RH(without condensation) |
| Dimension |
61(W)×99(H)×22(D)mm(Main frame)
65(W)×120(H)×24(D)mm(incl. Case) |
| Weight |
Approx. 130g
(incl. battery, cover and connector adapter) |
| Accessories |
AA Battery,
Cover,
Connector Adapter(180-SC),
Instruction Manual,
Wrist strap |
| Option |
Filter-in Adapter 180-FSC
|
|
|

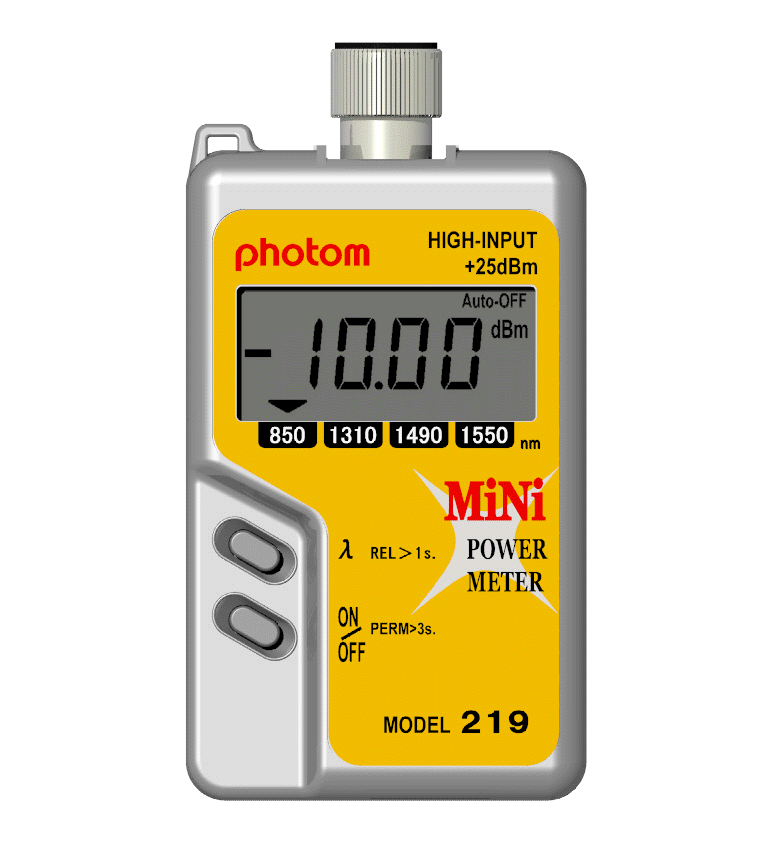

219
Measurement up to +25dBm, Low Reflection |
 |
• 850/1310/1490/1550nm for FTTH/LAN
• Low-reflection input port for direct measurement
of EDFA
• High-powered: measurement up to +25dBm
• Relative measurement function (dB)
• Auto offset compensation (ZERO SET)
• Needs only 1 "AA" battery. 50-hour battery life
|
| MODEL |
219 |
| Calibrated Wavelengths |
850nm, 1310nm, 1490nm, 1550nm |
| Measuring Range |
-50 to +25dBm |
Uncertainty **
|
±4% (k=2) at 1310nm, -10dBm, 23±5˚C |
PDL
|
<0.2dB |
| Input port |
Low-reflection PC Ferrule type, InGaAs Photo diode |
| Max. input |
+27dBm |
| Resolution |
dBm:0.01dB(≥-40dBm) |
| Optical Return Loss |
approx. 50dB |
| Fiber Type |
GI50/125, SM10/125 |
| Connector |
PC ferrule(φ2.5mm) connector ***
Adapter: SC standard, FC,LC,ST,DIN for optional |
| Function |
Relative measurment (dB)
Auto power-off (10 min.), ZERO SET |
| Display |
LCD(Measurement, Low Battery, Over/Under flow) |
| Power supply |
Battery(UM-3:AA)
(Manganese, Alkaline, NiMH)) |
| Battery life |
Approx. 50 hrs (Alkaline Panasonic LR6(G)) |
| Operating Environment |
-10 to +50˚C, ≤80%RH(without condensation) |
| Storage Environment |
-20 to +50˚C, ≤80%RH(without condensation) |
| Dimension |
61(W)×99(H)×22(D)mm(Main frame)
65(W)×120(H)×24(D)mm(incl. Case) |
| Weight |
Approx. 130g
(incl. battery, cover and connector adapter) |
| Accessories |
AA Battery,
Cover,
Connector Adapter(181-SC),
Instruction Manual,
|
|
* Model 217HA/217A/217H are discontinued. Replacement product is Model 219.
** Using PC connector for input port
*** Do not use APC(angled PC)ferrules; measurements will be inaccurate.
|
|
|

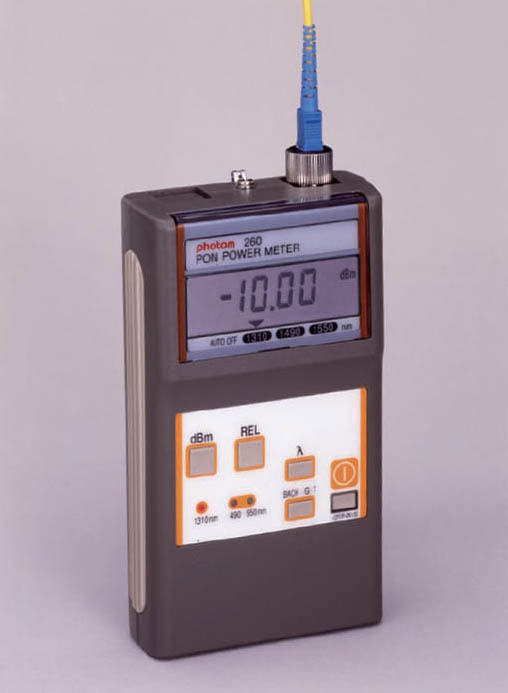

260 PON Power Meter
PON Signal Identification
|
 |
· Suitable for PON measurement (1310, 1490, 1550nm)
· PON Signal Identification (w/o specific Light Source)
· Possible to measure PON signals (Data, Video)
simultaneously
· Useful and offers a wide measuring range
( < +25dBm, 1550nm)
· Accurate measurement with the wide optical input
· LCD Backlight
· NH-AA can be recharged with an optional
AC adapter
|
| MODEL |
260 |
| Calibrated Wavelengths |
1310nm, 1490nm, 1550nm |
| Measuring Range |
-40dBm to +5dBm (1310nm, 1490nm)
-40dBm to +25dBm (1550nm) |
| Uncertainty * |
±0.50dB(k=2) at 1310nm, -10dBm, 23±5˚C |
| Sensor |
InGaAs Photo diode (φ１mm) |
| Resolution |
0.01dB |
| Fiber Type |
SM10/125 (PC ferrule) |
| Applicable connector |
PC ferrule(φ2.5mmdia) connectors *
Adapter：SC(181-SC), FC, LC, ST & DIN are optional |
| Function |
PON signal ID, Reference (dB), ZERO-SET,
AUTO-OFF |
| Display |
LCD (dBm, dB), LED indicator |
| Power Supply |
AA × 4, NH-AA × 4 or
AC Adapter |
| Battery Life |
Approx. 70 hours (Alkaline Panasonic LR6(G)) |
| Operating Environment |
-10 to +50˚C, ≤80%RH (without condensation) |
| Dimensions |
90(W)× 160(H)× 40(D)mm |
| Weight |
Approx. 400g |
| Accessories |
Instruction Manual, Portable Case, AA Batteries(4pcs),
Connector Adapter(181-SC),
Protection Cap, Ferrule Cap |
|
* Using PC connector for input port
** Do not use APC(angled PC)ferrules; measurements will be inaccurate.
|
|
211B/212B/213B
Pocket-sized: Ultra small and lightweight / High resolution 0.01dB |
 |
• Wavelength 1310nm, 1550nm, 1490/1650/1625nm
1650nm measurement for fiber monitoring (212B)
1310/1490/1550 for B-PON measurement
• Relative measurement function (dB)
• Dynamic range : 75dB
• Needs only 1 "AA" battery. 50-hour battery life
|
| MODEL |
211B *
(NEW) |
212B * |
213B * |
Calibrated
Wavelengths |
850nm,1310nm
1490nm, 1550nm |
1310nm, 1490nm
1550nm, 1650nm |
1310nm, 1490nm
1550nm, 1625nm |
| Measuring Range |
-70 to +5dBm |
| Uncertainty |
±3% (k=2) at 1310nm, -10dBm, 23±5˚C |
| Built-in sensor |
InGaAs
Photo diode (１mm dia.) |
| Resolution |
dBm:0.01dB (≥-50dBm) |
| Fiber Type |
GI, SM |
| Connector |
SC(180-SC) standard, others are optional |
| Functions |
Relative measurment (dB)
, ZERO SET
Auto power off (10min.) |
| Display |
3
1/2digit LCD |
| Power supply |
Battery(UM-3:AA)
(Manganese, Alkaline, Ni-Cd/NiMH) |
| Battery life |
Approx. 50 hrs (Alkaline Panasonic LR6(G)) |
| Operating Environment |
-10 to +50˚C, ≤80%RH(without condensation) |
| Dimension |
61(W)×99(H)×22(D)mm(Main frame)
65(W)×120(H)×24(D)mm(incl. Case) |
| Weight |
Approx. 130g
(incl. battery, cover and connector adapter) |
| Accessories |
AA Battery,
Cover,
Connector Adapter(180-SC),
Instruction Manual,
Wrist strap |
| Option |
Filter-in Adapter 180-FSC |
|
* Model 211A is discontinued. Replacement product is Model 211B.
|
|
215
Multi-functional standard model for singlemode and multimode
|
 |
• For GI(MM) and SM fiber
850nm, 1300nm(MM), 1310nm, 1550nm(SM)
•
Plug-in light source (optional) for loss test set
• Relative measurement (dB)
• Auto offset compensation (ZERO SET)
• Analog-output, Auto/Manual range, Data memory |
| MODEL |
215 |
| Calibrated Wavelengths (nm) |
850(MM), 1300(MM), 1310(SM), 1550(SM) |
| Measuring Range |
-60 to +5dBm (1nW to 3.2mW), 6 ranges |
| Uncertainty |
±3% (k=2) at 1310nm, -10dBm, 23±5˚C |
| Analog Output |
0 to 3.2V |
| Built-in sensor |
InGaAs
Photo diode(1mm dia.) |
Plug-in Light source
(Optional) |
LED Light Source Unit,
LD Light Source Unit |
| Resolution |
0.01dB (dBm,dB) |
| Fiber Type |
GI, SM |
| Connector |
SC(180-SC) standard, others are optional |
| Functions |
W/dBm/dB(REL),
Auto/Manual ranging, Data Hold , Built-in light source unit (optiona) |
| Display |
31/2digit LCD(3200 counts) |
| Power suppl |
Battery(AA)/4 pcs. or optional
AC adapter |
| Battery life |
approx. 150 hours
(Light source OFF, Alkaline Panasonic LR6(G) ) |
| Operating Environment |
-10 to +50˚C, ≤80%RH (without condensation) |
| Dimensions/Weight |
90(W)×160(H)×40(D)mm,430g(incl. batteries) |
| Accessories |
Connector Adapter(180-SC:2pcs), AA Batteries(4pcs), Portable Case,
Blank-Module(plug-in), 2P Pplug 3.5mm,
Shading Cap, Instruction Manual |
|
|
|
205A Ideal for Plastic Optical fiber (POF) and links |
 |
• Measures GI, POF fiber
• Wavelenght: 660nm, 780nm, 820nm and 850nm
• Plug-in light source (optional) for loss test set
• Relative measurement (dB)
• Auto offset compensation (ZERO SET)
• Analog-output, Auto/Manual range, Data memory |
| MODEL |
205A |
| Calibrated Wavelengths |
660, 780, 820, 850nm |
| Measuring Range |
-60
to +10dBm (1nW to 10mW),7 ranges |
| Uncertainty |
±3% (k=2) at 850nm, -20dBm, 23±5˚C |
| Analog Output |
0
to 3.2V |
| Built-in sensor |
Si
Photo diode(8mm dia.) |
Plug-in Light source
(Optional) |
LED Light Source Unit |
| Resolution |
0.1dB (dBm,dB) |
| Fiber Type |
POF, PCF, HPCF, GI |
| Connector |
SC(180-SC) standard, others are optional |
| Functions |
W/dBm/dB(REL),
Auto/Manual ranging, Data Hold, Built-in light source unit (optiona) |
| Display |
31/2digit LCD(3200 counts) |
| Power supply |
Battery(AA)/4 pcs. or optional
AC adapter |
| Battery life |
approx. 150 hours
(Light source OFF, AlkalinePanasonic LR6(G) ) |
| Operating Environment |
-10 to +50˚C, ≤80%RH (without condensation) |
| Dimensions/Weight |
90(W)×160(H)×40(D)mm,430g(incl. batteries) |
| Accessories |
Connector Adapter(180-SC:2pcs), AA Batteries(4pcs), Portable Case,
Blank-Module(plug-in), 2P Pplug 3.5mm,
Shading Cap, Instruction Manual |
|
|
|
208/218
Remote control and data acquisition from PCs |
 |
• RS-232C interface allows printer connection
• Store 64 data in memory
• Built-in light source (optional) for loss test set
• Model 208 measures POF and GI fiber:
Wavelengths: 660, 780, 820 and 850nm
• Model 218 measures GI and SM fiber:
Wavelengths: 820, 850, 1310 and 1550nm
|
| MODEL |
208
(Short wavelength) |
218
(Long wavelength) |
| Measuring Range |
-60
to +10dBm
(1nW 〜 10mW) |
-60
to +5dBm
(1nW 〜 3.2mW) |
| Calibrated Wavelengths |
660, 780, 820 and 850nm |
820, 850, 1310 and 1550nm |
Uncertainty
(k=2) |
±3%(±0.13dB)
at 850nm,-20dBm, 23±5˚C |
±3%(±0.13dB)
at 1310nm,-10dBm, 23±5˚C |
| Analog output |
0
to 3V |
| Interface * |
RS-232C ** |
| Built-in sensor |
Si
Photodiode
(dia. 8mm) |
InGaAs
Photodiode
(dia. 1mm) |
Plug-in Light source
(Optional) |
LED Light Source Unit |
LED Light Source Unit,
LD Light Source Unit |
| Resolution |
0.01dB |
| Fiber type |
POF, GI |
GI, SM |
| Connector |
SC(180-SC) standard, others are optional |
| Functions |
W/dBm, REL, data hold, auto-zeroing, average, blank,
remote-control, data storagee (64 data), data-printout (via RS232C), memory, calender,
Built-in Light source (optional) |
| Display |
41/2digit LCD (30000 counts) |
| Power Supply |
AA battery 4 pcs. or AC line(
AC adapter optional)
NiMH batteries (optional) can be recharged with an
AC adapter (optional) |
| Battery Life |
Approx. 100 hours
(Light source OFF, Alkaline Panasonic LR6(G) ) |
| Charge Time |
Approx. 10hours (NiMH Batteries w/AC adapter) |
| Operating Environment |
-10 to +50˚C, ≤80%RH (without condensation) |
| Dimension / Weight |
90(W)×160(H)×40(D)mm, 430g(incl. batteries) |
| Accessories |
Instruction Manual, Portable Case,
Connector Adapter (180-SC:2pcs),
3Pφ2.5 Plug (RS232C), 2Pφ3.5 Plug (Analog Out), AA Batteries (4pcs),
Blank-Module,
Shading Cap |
|
* RS232C cable is optional.
** Use commercially obtainable USB/RS232C-converting-adaptor for USB interface
|
|
|
|
